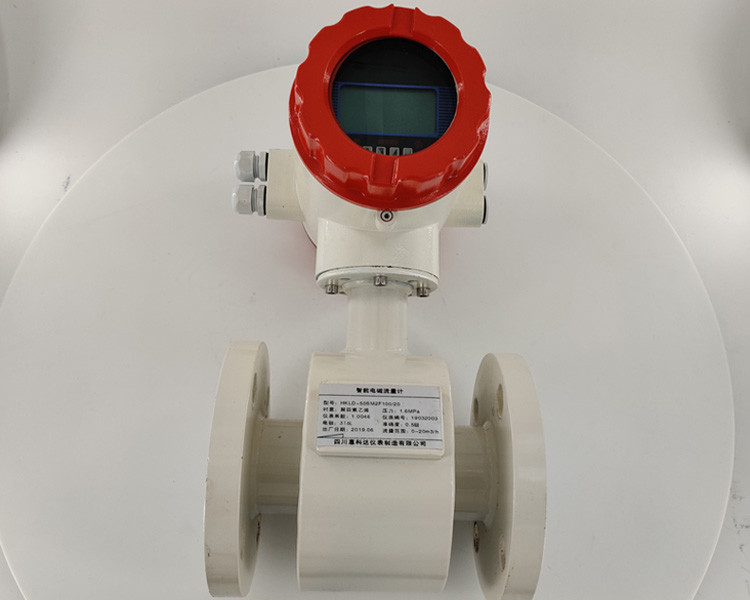

Sea Water Liquid Control Electromagnetic Flow Meter For Fire Pump
Electromagnetic flow meters, or magmeters, are comprised of a
transmitter and sensor that together measure flow. The magnetic
flow meter’s sensor is placed inline and measures an induced
voltage generated by the fluid as it flows through a pipe. The
transmitter takes the voltage generated by the sensor, converts the
voltage into a flow measurement and transmits that flow measurement
to a control system.
A magmeter utilizes a set of coils and a pair of electrodes for
flow measurement. The meter’s coils are driven by the transmitter
with an applied current. Once powered, a magnetic field is formed
between both coils. When the pipe is full and the fluid begins to
flow, the force of the magnetic field causes the negatively and
positively charged particles of the fluid to separate as they pass
through the magnetic field. This separation causes an induced
voltage between the electrodes and sensor.
Features
1. There are no flowing and blocked flow parts in the pipeline of
the 50mm water oil electromagnetic flow meter, and there is almost
no additional pressure loss in the measurement.
2. The measurement result of the 50mm water oil electromagnetic
flow meter has nothing to do with physical parameters, such as flow
distribution, fluid pressure, temperature, density and viscosity.
3. The electromagnetic flowmeter uses a fast, high-precision 16-bit
embedded processor to enhance the measurement stability.
4. The 50mm water oil electromagnetic flow meter has
anti-interference and high reliability, and the measurement range
is up to 150: 1.
5. The flowmeter adopts ultra-low EMI switch, and the power supply
voltage range is wide.
Product Parameters
Product Name | Electromagnetic Flowmeter |
Repeatability error | +/-0.1% |
Accuracy class | 0.5 class, 1.0 class |
Measured medium temperature | Common rubber lining: -20~+60 ° c |
High temperature rubber lining: -20~+90 ° c |
PTFE lining: -30~+100 ° c |
High temperature vinyl lining: -30~+180 ° c |
Rated working pressure | pipeline: DN10~DN65: ≤ 2.5MPa;DN80~DN150: ≤ 1.6MPa;
DN200~DN1200: ≤ 1.0MPa |
Flow rate range | 0.3~15m/s |
Measured fluid conductivity | ≥5μs/cm liquid |
Output | 4~20mA / 4~20mA + Hart |
Electrode material | 316L, titanium (Ti), tantalum (Ta), Hastelloy (H),
Platinum (Pt) or other special electrode materials |
Working power supply | 85~265VAC / 24VDC / Battery |
Straight pipe length | pipe: ≥ 5DN in the upper reaches, downstream
of greater than or equal to 2DN |
Connections | Flange |
Protection grade | standard: IP65; IP68(optional) |
Explosion-proof mark | mdllBT4 |
