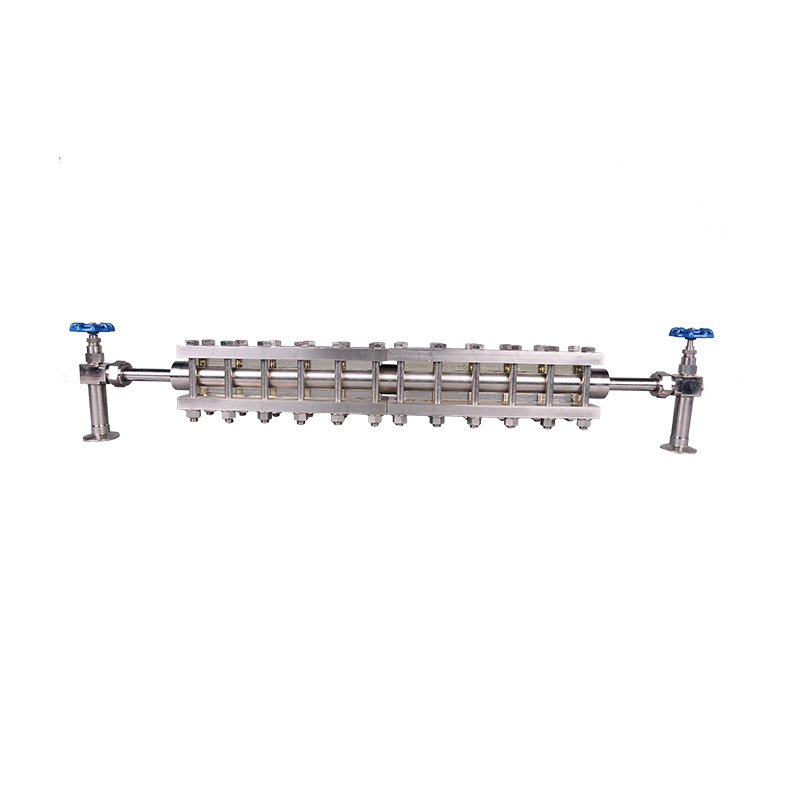

    Reflex Flat Type Glass Level Gauge With RC1/4 Female Thread Heating Steam Cube Connector

    Ask Lasest Price
    Brand Name : VACORDA
    Model Number : HKD
    Supply Ability : 100 Piece/Pieces per Week
    Price : $79.00 - $365.00 / Pieces
    • Product Details
    • Company Profile

    Reflex Flat Type Glass Level Gauge With RC1/4 Female Thread Heating Steam Cube Connector

    Reflex Flat Type Glass Level Gauge With RC1/4 Female Thread Heating Steam Cube Connector


    Product Description
    The HK glass plate level gauge is divided into three types: transparent type, reflection type and sight glass type. It mainly consists of a liquid level meter body, an upper valve (air valve), a lower valve (liquid valve), a drain plug (or a drain valve), and an insurance steel ball. When the glass plate is damaged, the safety steel ball automatically blocks the gas and liquid side valves to prevent or reduce the outflow of the medium, so that the root valve of the liquid level meter can be manually cut off for treatment. This series of products is solid in structure, reliable in sealing and easy to install. It is an ideal instrument for liquid level observation in various medium and low pressure containers.

    Product Parameters

    Nominal length (center to center ):

    0~300-0~2000mm

    Recommended length:

    550, 850, 1150, 1450, 1750mm

    Material:

    Carbon steel, 304, 316L

    Nominal pressure (MPa):

    Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6

    Working temperature:

    0~250°C

    Connection flange:

    DN20 (3/4”); A,B type---HG20592; C type---HG20615-09

    Heating steam cube connector:

    RC1/4 internal thread

    Heating steam pressure:

    ≤1.0MPa

    Steel ball closing pressure:

    ≥0.3MPa

    Detailed Images

    Reflex Flat Type Glass Level Gauge With RC1/4 Female Thread Heating Steam Cube ConnectorReflex Flat Type Glass Level Gauge With RC1/4 Female Thread Heating Steam Cube Connector
