(1) Center-center distance:

150~6000mm or customized

(2) Medium density:

More than 0.45g/cm3

(3) Nominal pressure:

PN2.5~PN40, PN40~PN320(x 0.1MPa)

(4) Material:

SS304, 316L, 321,PP, PTFE, or customized

(5)Operating temperature:

-190 ~ +425 °C

(6) Process connection:

DN20~DN80/RF/14,DN80~DN250/RF/14

(7)Indicator types:

A: Al &ABS flap cylinder

B: Al flap plate

C: PVC ABS flap cylinder

D: PP&ABS flap cylinder

E: AL &LED

F: PP&LED

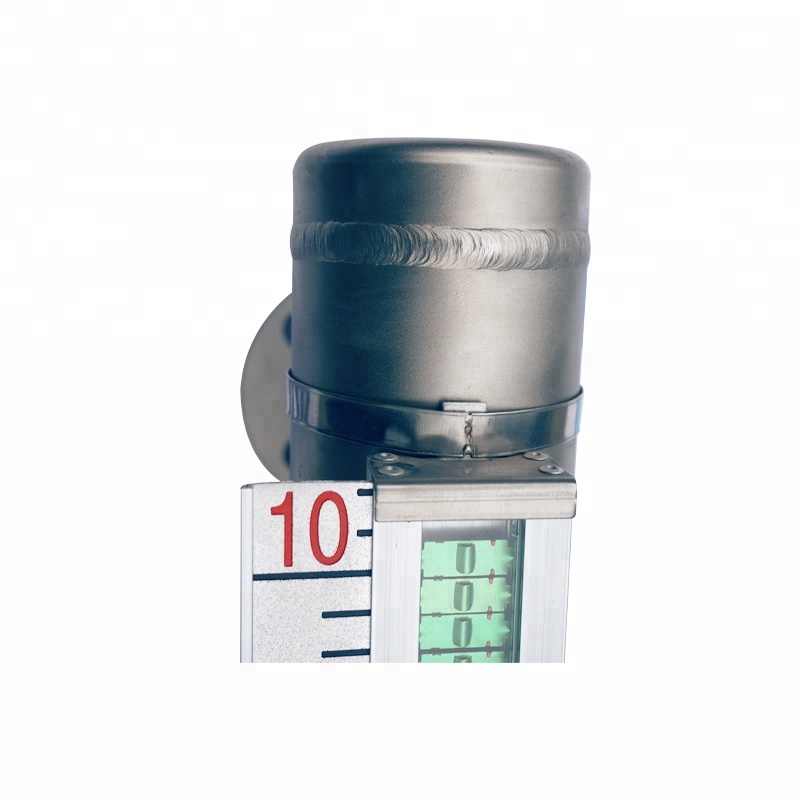

(8) Structure of top chamber:

1.Welding cover 2.welding cover with M14*1.5 plug screw 3.flange

4.flange with M14*1.5 plug screw 5.welding cover with DN20 flange

6.flange with DN20 flange 7.welding cover with air valve 8.flange with air valve

(9) Structure of bottom chamber:

1.flange cover 2.flange with drain plug screw 3.flange with DN20 welding tube

4.with DN20 flange 5.with needle/ball valve

(10)Protection class:

IP65

Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc.,

suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity.

Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler steam

specialized type etc,they have some differences in technical parameter.
