ISO9001 Manufacture High Pressure RF Remote Magnetic Sewage
Electromagnetic Flow Meter Price
Magnetic flowmeters, also known as simply mag meters, offer a
number of practical advantages over traditional flow metering
technologies which employ mechanical measuring techniques.
The simple construction of our magnetic flow meters is the key to
these advantages. Dn150 3 inch electromagnetic flow Meter magnetic
sewage flowmeter magnetic flow meter does not contain any moving
parts, rotating gears or turbines, or bearings. Instead, it relies
on two electrodes to measure the density of the induced magnetic
field that results from an electrically conductive fluid, such as
water, flowing through a pipe. The density of the magnetic field is
directly proportional to the fluid velocity of the flowing liquid.
A magmeter utilizes a set of coils and a pair of electrodes for
flow measurement. The meter’s coils are driven by the transmitter
with an applied current. Once powered, a magnetic field is formed
between both coils. When the pipe is full and the fluid begins to
flow, the force of the magnetic field causes the negatively and
positively charged particles of the fluid to separate as they pass
through the magnetic field. This separation causes an induced
voltage between the electrodes and sensor.
Features
* Water, wastewater & utility applications
* Available in flanged & wafer styles
* Polyurethane, PTFE & Neoprene liner
* Line sizes available from 1/2in (15mm) to 48in (1200mm) Call us
for sizes above 24 inches
* Fully welded construction Withstands sustained vibration
* Dual-compartment transmitter housing keeps electronics isolated
from moisture and contamination
* Continuous meter verification confirms meter calibration without
interrupting the process
* Electrode coating diagnostic indicates when preventive
maintenance is needed, avoiding unexpected downtime
* High process noise diagnostic provides accurate readings to
reduce process variability
* Printed report verifies meter performance for regulatory agencies
* Easiest-to-use Local Operator Interface (LOI)
* Simplified configuration at the meter
* Fully tested and ready to install
Product Parameters
Product Name | Electromagnetic Flowmeter |
Repeatability error | +/-0.1% |
Accuracy class | 0.5 class, 1.0 class |
Measured medium temperature | Common rubber lining: -20~+60 ° c |
High temperature rubber lining: -20~+90 ° c |
PTFE lining: -30~+100 ° c |
High temperature vinyl lining: -30~+180 ° c |
Rated working pressure | pipeline: DN10~DN65: ≤ 2.5MPa;DN80~DN150: ≤ 1.6MPa; DN200~DN1200: ≤ 1.0MPa |
Flow rate range | 0.3~15m/s |
Measured fluid conductivity | ≥5μs/cm liquid |
Output | 4~20mA / 4~20mA + Hart |
Electrode material | 316L, titanium (Ti), tantalum (Ta), Hastelloy (H), Platinum (Pt) or other special electrode materials |
Working power supply | 85~265VAC / 24VDC / Battery |
Straight pipe length | pipe: ≥ 5DN in the upper reaches, downstream of greater than or equal to 2DN |
Connections | Flange |
Protection grade | standard: IP65; IP68(optional) |
Explosion-proof mark | mdllBT4 |

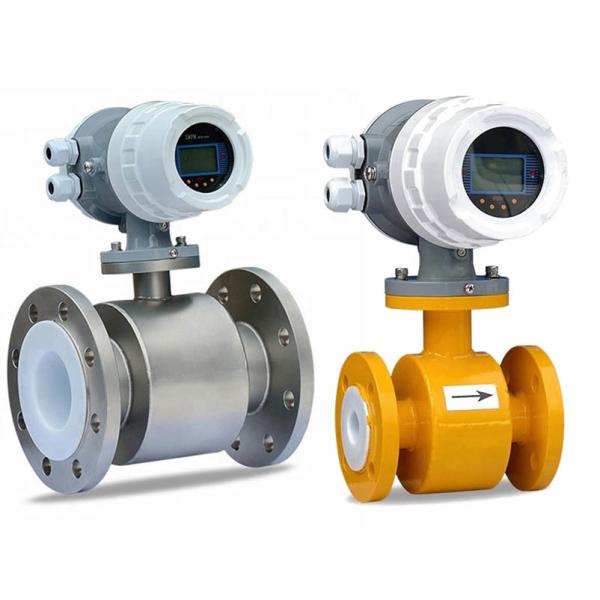

Deatail Images
Increasing energy demand also provides significant room for growth
in advanced flowmeters, especially for ultrasonic flowmeters and
Coriolis flowmeters. Transportation monitoring is the fastest
growing application of Coriolis and ultrasonic flowmeters in oil
and gas applications. Oil prices continue to rise, the calculation
of transmission precise becomes very important, and the wrong cost
is particularly expensive. These flowmeters can provide the highest
level of accuracy and reliability required, and become the
mainstream choice for the oil and gas industry.
