Magnetic float level switch consist of reed and magnetic float ball, which is based on the floating principle that utilizes magnetic float ball to make the relevant reed close or open according to the height changing of the liquid level, thus controlling and measuring the liquid level.

Product features

1.Long life span, stable and reliable operation, easy installation, almost no maintenance

2.Independent of mediums’ physical and chemical status

3. Appliable for all kinds of bad medium environment with density ≥0.5g/cm³

4. Available for interface detection of mediums with two different densities

5. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+150 ° c

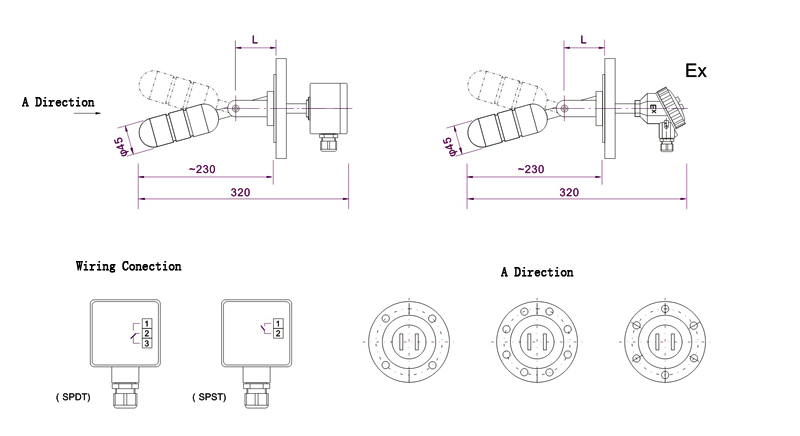

Product Parameters
