Flange Installation Guided Wave Radar Water Level Sensor And Radar Level Transmitter

Supporting technology

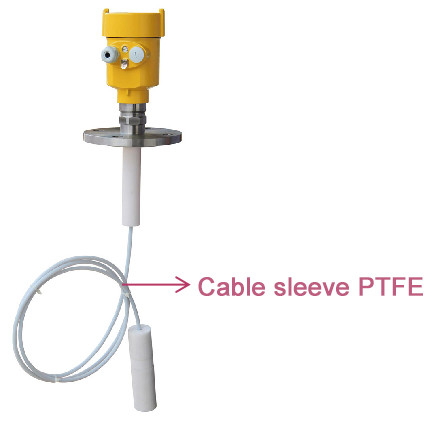

For HBRD702 radar, the company's technology is PTFE or PFA for the time being. PFA adopts welding technology (with pictures). It can only be used for rod type and can withstand a certain pressure. Cable PTFE 702 radar technology is sealed with PTFE. Therefore, it cannot withstand pressure.

Selection and Installation of Guided Wave Radar

1.For the selection of the range, the end of the probe or weight is 5cm from the bottom of the tank More appropriate.

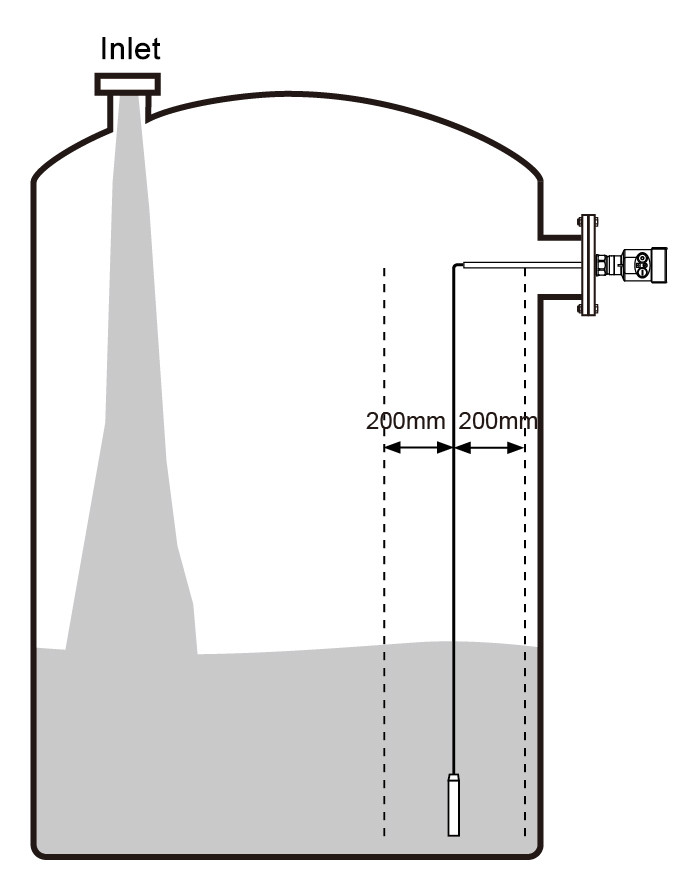

2. The echo of a guided wave radar is transmitted along a rod or cable antenna, and the radius of the radiation surface About 200mm, because of the special type of guided wave radar emission, in certain cases Next, guided wave radar can be installed on the side wall.

Configuration of flange

HBRD702 radar must be used with flanges (A and B) (Enhanced signal), the threaded PTFE radar signal is weak, Not recommended.

Guided Wave Radar Type
