Water Level Gauge Sight Glass Level Indicator In Boiler Good Sealability

Ask Lasest Price
Brand Name :	VACORDA
Model Number :	Water Level Gauge for boiler with Reflex or Transparent type China Supplier
Certification :	ISO,CE
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	100 sets per week
Delivery Time :	10 working days

Add to Cart

Product Details
Company Profile

Water Level Gauge Sight Glass Level Indicator In Boiler Good Sealability

Water Level Gauge Sight Glass Level Indicator In Boiler Good Sealability

Product Description

The HK glass plate level gauge is divided into three types: transparent type, reflection type and sight glass type. It mainly consists of a liquid level meter body, an upper valve (air valve), a lower valve (liquid valve), a drain plug (or a drain valve), and an insurance steel ball. When the glass plate is damaged, the safety steel ball automatically blocks the gas and liquid side valves to prevent or reduce the outflow of the medium, so that the root valve of the liquid level meter can be manually cut off for treatment. This series of products is solid in structure, reliable in sealing and easy to install. It is an ideal instrument for liquid level observation in various medium and low pressure containers.

Product installation

Product Parameters

Nominal length (center to center ):	0~300-0~2000mm
Recommended length:	550, 850, 1150, 1450, 1750mm
Material:	Carbon steel, 304, 316L
Nominal pressure (MPa):	Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6
Working temperature:	0~250°C
Connection flange:	DN20 (3/4”); A,B type---HG20592; C type---HG20615-09
Heating steam cube connector:	RC1/4 internal thread
Heating steam pressure:	≤1.0MPa
Steel ball closing pressure:	≥0.3MPa

Detailed Images

Related Products

Product Application

Water Level Gauge Sight Glass Level Indicator In Boiler Good Sealability

Company Information

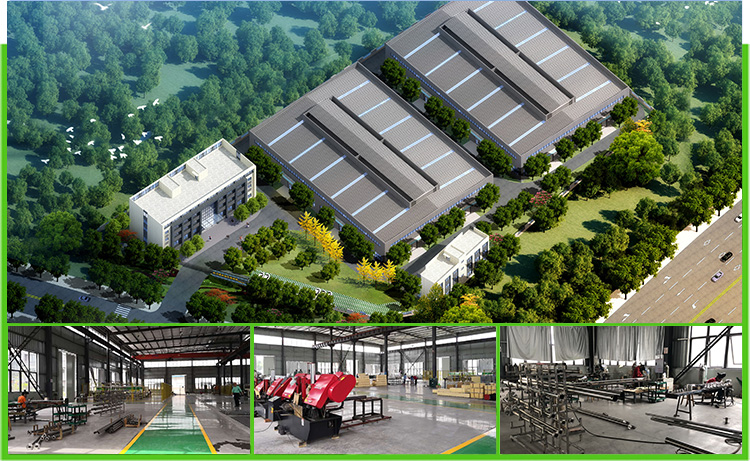

about vacorda instruments

Sichuan VACORDA Instruments Manufacturing Co., Ltd. is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 21 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
