Product Description

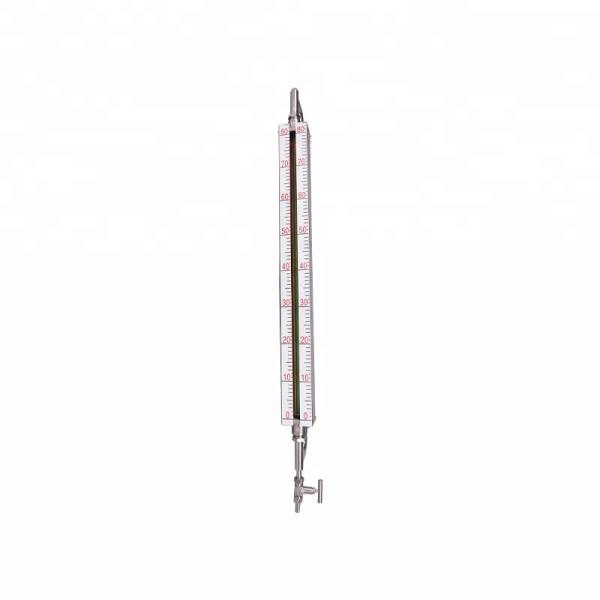

UGS series double-color quartz tube liquid level meter is composed
of high purity quartz glass tube, explosion-proof angle valve, body
and so on. The height of liquid and gas phase is shown in red and
green respectively. It has the advantages of clear display, direct
viewing, adjustable observation direction, simple structure,
reliable operation and night observation with light source. Quartz
liquid level tube can be easily wiped or flushed, angle valve in
the steel ball in the quartz tube position accidental explosion
automatically blocked the fluid passage, reduce or avoid accidents
Detailed Images
Workshop and Procesing
Certificate
Working principle: It consists of two parts: a magnetic indicator and a float. The
magnetic indicator is composed of a red and white magnetic flipping
column or a magnetic flipping card and a guard plate equipped with
a small magnetic steel. When the floating ball equipped with
magnetic steel moves up and down with the liquid, the beam magnetic
field of the permanent magnet in the floating ball turns the
magnetic turning column 180°. When the liquid level rises, the
turning column turns from white to red. It turns from red to white
to indicate the height of the liquid level. (The color of the flop
and the flop can be different, such as blue and red or black and
white, etc.). When it is necessary to transmit output, install a
reed switch or magnetic sensor transmitter parallel to the magnetic
indicator to realize the remote transmission of 4-20mA or 0-10mA
current signal; equipped with a liquid level alarm switch, and The
upper and lower limits of the liquid level can be alarmed.
Feature: In addition to on-site instructions, it can also be equipped with
remote transmitters, alarm switches, and control switches with
complete detection functions. The indication is novel, the reading
is intuitive and eye-catching. The indicating mechanism is
completely isolated from the measured medium, so it has good
sealing, high reliability and safe use. The structure is simple,
the installation is convenient, and the maintenance cost is low.
Corrosion resistance, no power supply, explosion-proof. According
to the different installation positions in the container, there are
two types of side mounting and top mounting.
